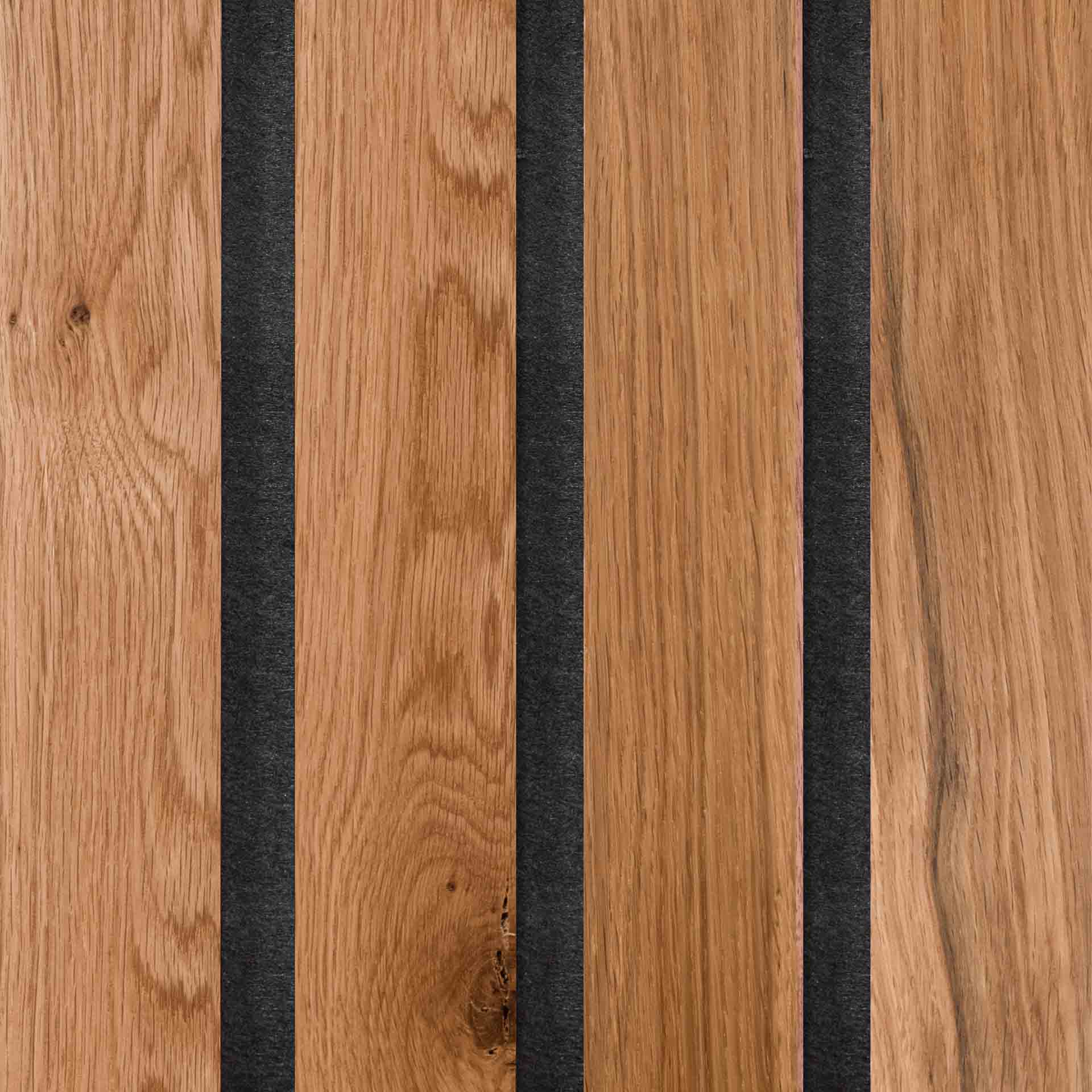

White Oak Batten Acoustic Ceiling & Wall Panel

Name: White Oak Batten Acoustic Ceiling & Wall Panel - TerraMai
SKU: 3516
Price: 415.20 USD
Availability: InStock

Request Sample

Material Source: New wood from the United States.

Net Dimensions: 1-7/16" (37 mm) thick x 12" (305 mm) face width x 8' (2,438 mm) fixed lengths.

Millwork: Surfaced four sides (S4S).

Construction: Four 2-1/4" (57mm) wide x 1/2" (13mm) deep x 96" (2,438mm) long slats spaced 3/4" (19mm) apart installed on 3/8" (10mm) thick x 12" (305mm) wide x 96" (2,438mm) long, 50% post-consumer recycled black PET rigid Acoustic board with nine 9/16" (14mm) thick x 1-1/16" (27mm) wide x 12" (305mm) long rails painted black.

Finish: Low-VOC matte polyurethane.

Character: Mixed grain with occasional small sound tight knots or open knots not to exceed 1/2" prefilled with sanding dust mixed with glue.

SKU: 3516

Request Quote

Acoustic Performance:

	Acoustic Insulation Thickness	SAA (Sound Absorption Average)	NRC (Noise Reduction Coefficient)
Ceilings*	Standard 3/8″ Insulation	0.78	0.75
Ceilings*	Extra 1″ Insulation	0.83	0.80
Walls^**	Standard 3/8″ Insulation	0.66	0.65
Walls^**	Extra 1″ Insulation	0.85	0.85

^* Testing performed by an accredited 3rd party lab in accordance with ASTM C423 using E-400 Mount
^** Testing performed by an accredited 3rd party lab in accordance with ASTM C423 using A-Mount
